CMS-3000 Array Attachment

CMS-3000 Array Attachment

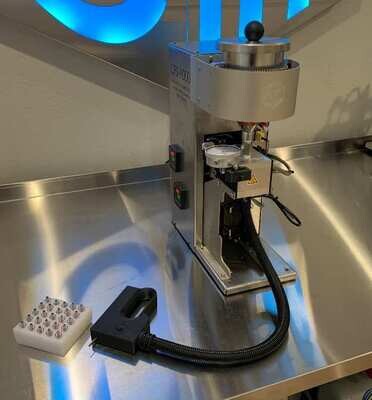

The CMS-3000 is an attachment that fits all Credence Filling Machines except the ACFS-4000T Automatic. It speeds the process for filling cartridges packaged in array form (in a foam block etc.). This ensures the same accuracy and repeatability to which you are accustomed when using Credence equipment, while also enabling you to keep the cartridges packed in the array block as you use the needle remotely fill the cartridges. It takes out the step for you to unpack and repack the cartridges from the array block, thereby saving you significant labor cost.

*Oils it can deliver: Recommended for distillate only.
*Devices it can Fill: All “Top Fill” Types of Cartridges, Pens, Disposables, Pods, Syringes, etc.
*Delivery Volume Range: Unlimited. Settable by Pump Head Angle Adjustment.
*Throughput Potential: Up to 3000 half-gram devices per hour.
*Filling Accuracy: +/- 1%
*Power Requirements: Connects to Credence Filling Machine.
*Change-Over time between Lots: As little as 2 Minutes.
*Change-Over time between Devices: As little as 5 Minutes.
*Cleanout: Ethanol
*Needle Heater Temperature 60-80C (Switchable)
*Shipping Weight 2 lbs.
